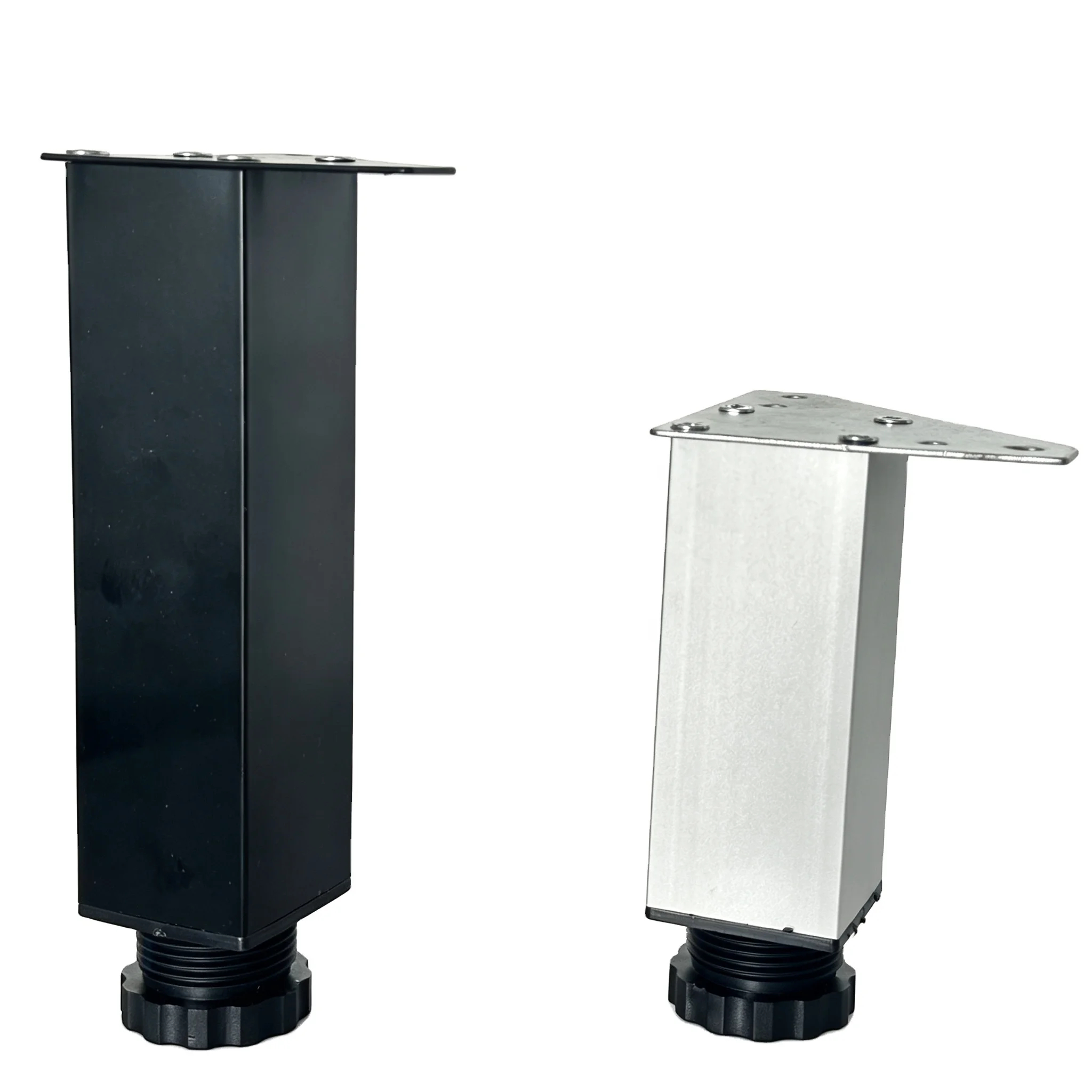

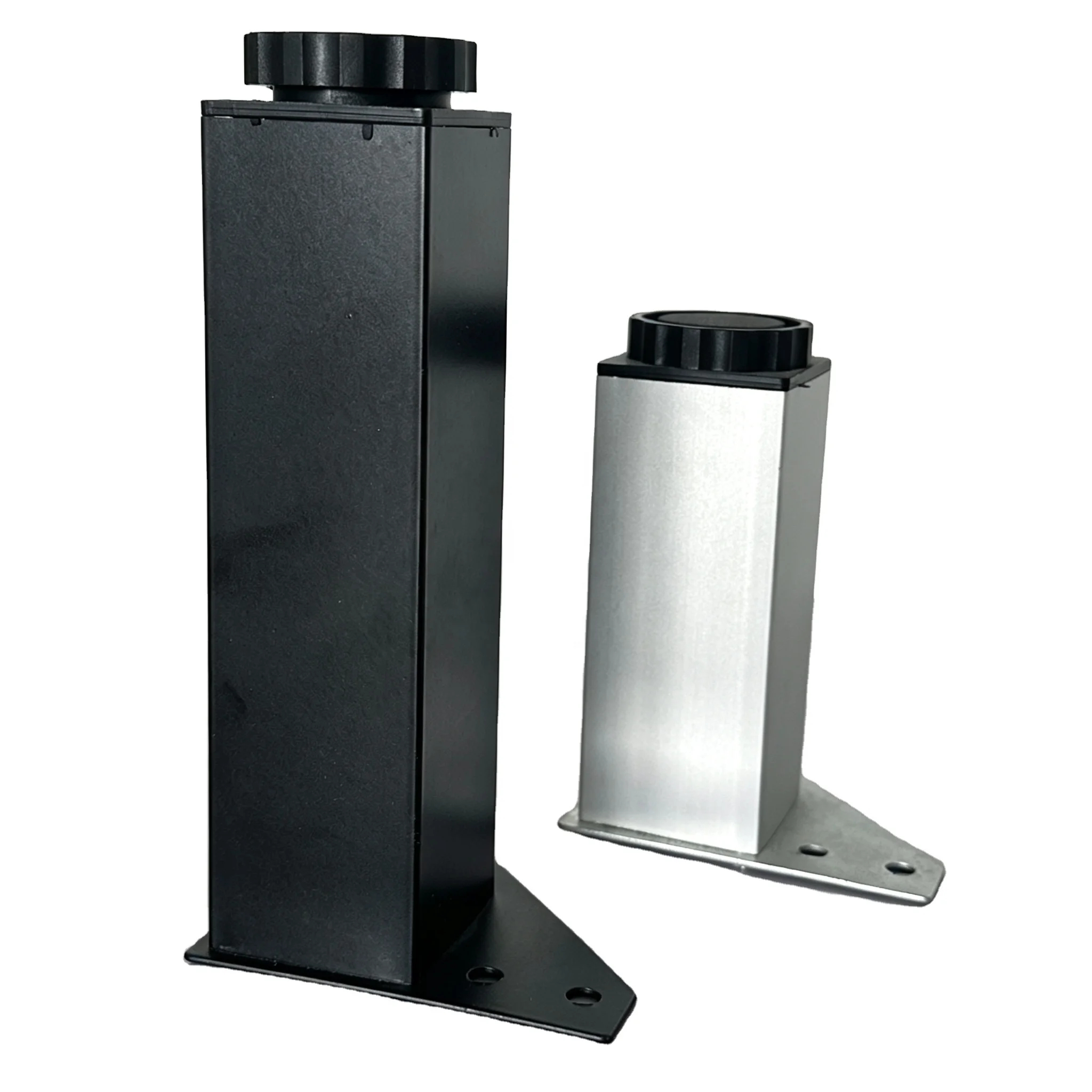

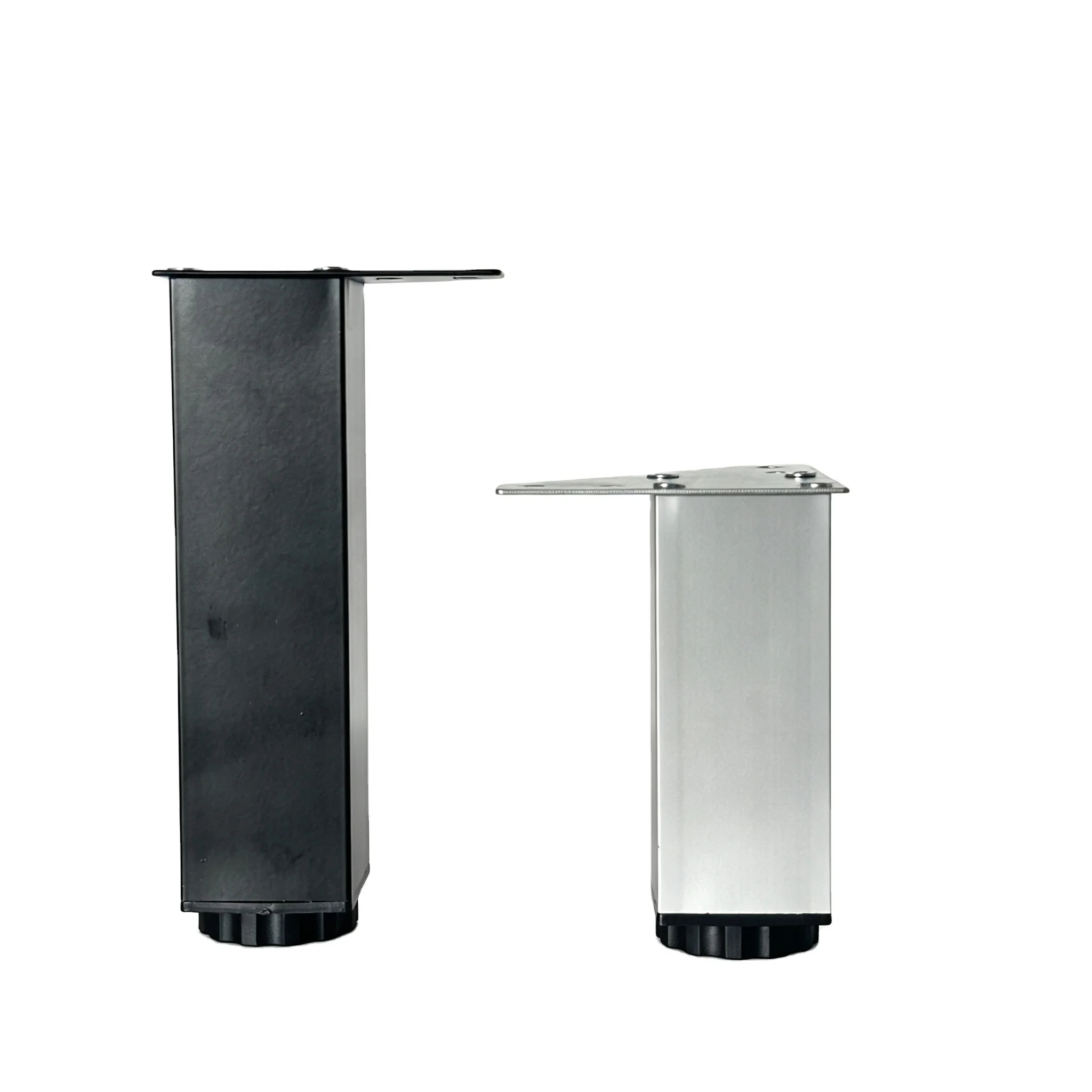

The adjustable aluminium square furniture legs manufactured and supplied by BLS Hardware are heavy-duty structural alloy feet engineered for contemporary couches, modular cabinetry, and luxury casework. Fabricated in our Jinli, Guangdong source factory from 6063-T5 aluminum, these square-profile legs combine geometric styling with precision height-leveling capacity, elevating frames cleanly while protecting floors from structural fatigue.
Within the integrated BLS manufacturing framework, upholstery producers specify these architectural adjustable aluminium square furniture legs alongside precision interlocking sofa connector hardware and multi-angle sofa hinges. Unifying base stability with decorative hardware also coordinates seamlessly with heavy-duty sofa bed hardware in convertible daybeds and sleeper couches.
Key Features of Adjustable Aluminium Square Furniture Legs
- Extruded 6063-T5 Aluminum: Engineered with 1.5mm reinforced square profile walls to deliver rigid vertical support without buckling.
- Threaded Leveling Glide: Integrated threaded foot allows smooth zero-to-fifteen-millimeter height adjustment to balance furniture on uneven floors.
- Anodized Anti-Corrosion Surface: Protective oxide coating resists moisture and grease, passing 24 to 48 hours of salt spray testing.
- Integrated Anti-Scratch Base: Non-marring ABS polymer foot pad isolates metal from floor surfaces, preventing scratches and dragging friction.
- Pre-Drilled Mounting Plate: Reinforced top mounting flange features four countersunk screw holes for rapid alignment and rigid fastening into wood rails.
| Parameter | Engineering Specification |
|---|---|
| Product Name | Heavy-Duty Adjustable Aluminium Square Furniture Legs |
| Material Grade | 6063-T5 Extruded Structural Aluminum Alloy |
| Profile Wall Thickness | 1.5 mm Reinforced Square Extrusion |
| Dimensional Tolerance | Precision Stamping Standard ±0.2 mm |
| Standard Elevation | 100 mm / 120 mm / 150 mm |
| Leveling Range | 0 to 15 mm Threaded Base Adjustment |
| Surface Treatment | Anodized Matte Silver, Brushed Gold, Black |
| Packaging Standard | 50 to 100 Pieces per Export Carton |
Need Engineering CAD Models? Request 2D dimension blueprints and 3D STEP files for frame design verification.
Request CAD (STEP/DWG) →
Target Furniture Applications
- Modular Sectional Couches: Elevates sofa frames while providing adjustable leveling across uneven floors.
- Modern Kitchen Cupboards: Delivers waterproof, rust-proof base support under humid and moisture-heavy kitchen environments.
- Bathroom Vanity Units: Shields wooden cabinet carcasses from standing floor water and moisture.
- Commercial Office Credenzas: Provides rigid vertical load bearing and clean architectural styling for commercial storage fixtures.
Three-Step Installation Guide
- Step 1: Position the square top mounting flange against the corner framing beneath the furniture chassis.
- Step 2: Fasten four countersunk screws through the pre-drilled holes into the wooden subframe.
- Step 3: Rotate the bottom threaded polymer glide clockwise or counterclockwise to achieve perfect floor leveling.
Factory Direct OEM and ODM Capabilities
BLS Hardware supports custom leg heights, customized extrusion profiles, and tailored anodized finishes for furniture manufacturers. In our Jinli factory, our tooling team manufactures custom adjustable aluminium square furniture legs to match your exact casework blueprints, weight specifications, and automated assembly line standards.
Frequently Asked Questions
What load capacity do these adjustable aluminium square furniture legs support?
Each leg supports over 200 kg under static testing, achieving over 800 kg across a standard four-leg installation.
What is the maximum height adjustment range for leveling?
The integrated threaded foot provides 0 to 15 mm of fine adjustment to stabilize furniture on uneven floor surfaces.
Are mounting screws included in bulk export orders?
Yes, we supply matching stainless steel or zinc-plated wood screws in customized packaging bags upon request.
