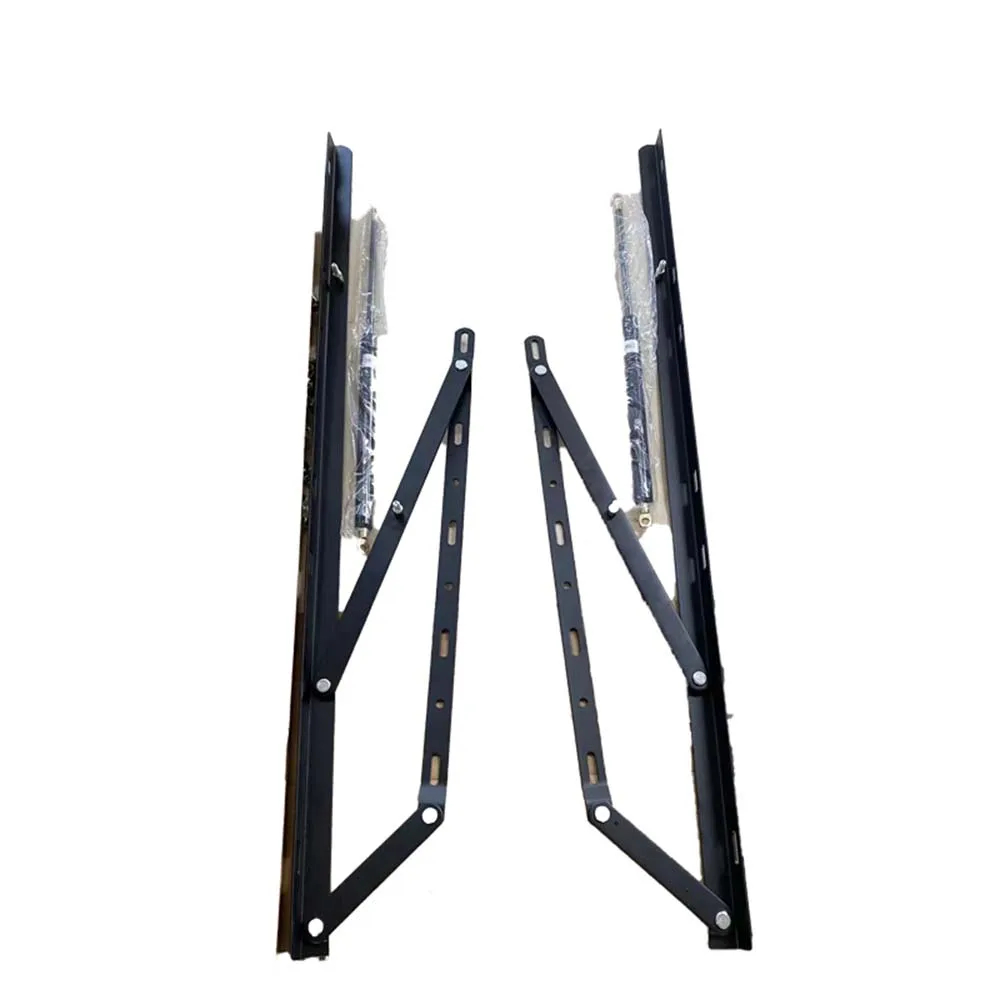

The bed storage lift mechanism manufactured and supplied by BLS Hardware is a heavy-duty pneumatic bed elevation system engineered for ottoman beds, storage divans, and space-saving furniture. Built with cold-rolled Q235 structural steel and calibrated gas pistons, this hardware provides smooth lifting, safe open retention, and effortless daily mattress access.
To build coordinated space-saving furniture suites, manufacturing plants integrate this bed storage lift mechanism alongside structural sofa legs, multi-position sofa hinges, and heavy-duty sofa bed hardware assemblies.
Key Features of Our bed storage lift mechanism
- Q235 Carbon Steel Chassis: 2.5mm heavy-gauge steel side channels resist deflection and twisting during continuous lifting cycles.
- High-Pressure Gas Struts: Dual 1200N nitrogen pistons offset heavy mattress weight for effortless one-handed elevation.
- Over-Center Safety Geometry: Symmetrical scissor arms maintain stable stay-open positioning to allow safe hands-free compartment access.
- Electrostatic Powder Coating: Corrosion-resistant matte black coating protects structural pivot rivets and links against ambient humidity.
- 150kg Load Capacity: Reinforced steel base brackets support heavy wooden slat frames and thick pocket-spring mattresses.
Technical Specifications
| Engineering Parameter | Standard Specification |
|---|---|
| Structural Material | Q235 Cold-Rolled Carbon Steel |
| Bracket Thickness | 2.5mm Linkages / 3.0mm Mounting Base Plates |
| Manufacturing Tolerance | ±0.2mm Precision Stamped Tolerance |
| Pneumatic Force | Dual 1200N Nitrogen Gas Struts |
| Surface Finishing | Electrostatic Powder Coated Matte Black |
| Corrosion Resistance | 48-Hour Neutral Salt Spray (NSS) Tested |
| Support Weight Capacity | 150kg (330 lbs) Total Mattress Assembly |
| Cycle Life Durability | 30,000 Continuous Lift and Lower Cycles |
Download Industrial CAD Engineering Files
Access precision 2D DWG layout drawings and 3D STEP models for frame joinery and CNC prototyping. Direct Jinli factory verification.
Target Applications
Commercial furniture makers specify this bed storage lift mechanism for residential ottoman storage beds, gas-lift platform bed bases, hospitality sleeper bases, and space-saving daybeds. Its modular bracket design fits end-opening and side-opening storage frame configurations.
3-Step Rapid Installation Guide
- Step 1: Bolt the bottom mounting angle iron to the internal timber bed carcass using factory pilot holes.
- Step 2: Secure the top lifting bar to the movable slatted bed platform ensuring symmetrical parallel alignment.
- Step 3: Snap the 1200N gas struts onto ball-stud brackets and test full travel range with mattress installed.
OEM/ODM Customization Capabilities
Operating in Jinli, Guangdong, our factory engineers every bed storage lift mechanism to client specifications. We customize mounting hole pitches, steel gauges up to 3.5mm, pneumatic strut ratings from 600N to 1500N, and supply export-ready bulk pallet packaging.
Frequently Asked Questions
What mattress weight does the bed storage lift mechanism support?
With dual 1200N gas struts, each pair easily lifts mattress and slat assemblies weighing between 60kg and 150kg. Strong steel pivot rivets prevent platform twisting during operation.
Can this hardware support both end-opening and side-opening beds?
Yes, versatile mounting hole configurations allow furniture makers to install the hardware for either foot-end or side-lift storage frames. Mounting geometry accommodates standard frame depths.
What is the wholesale minimum order quantity and lead time?
Our standard export MOQ is 100 sets packed in export master cartons. Evaluation samples dispatch within 48 hours, and container volume production ships in 20 to 25 days.
Request Factory Wholesale Quotation
Contact our engineering sales department for volume price tiers, custom tooling, and export container freight.
