Sofa Furniture Hinges Pull-out Sofa Bed Mechanism Black Folding Sofa Bed Lifting Mechanism with Wheels

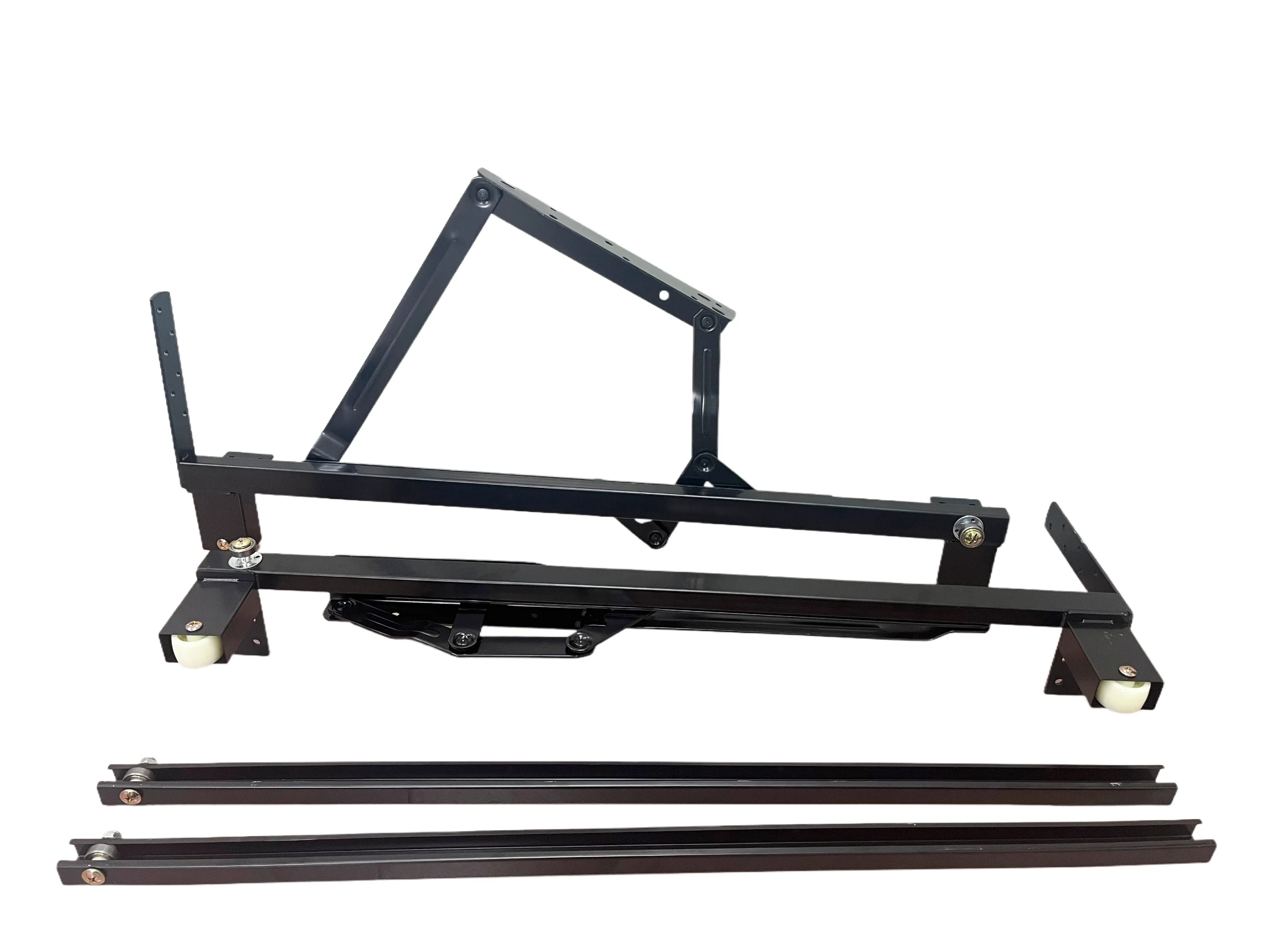

The pull out sofa bed mechanism with wheels manufactured and supplied by BLS Hardware is a dual-action pop-up trundle steel system engineered for convertible sleeper couches and daybeds. Fabricated from commercial Q235 carbon steel conforming to ASTM standards, this 5.45 kg per pair hardware integrates precision floor casters and 65Mn counterbalanced extension springs for export furniture factories worldwide.

To construct a fully synchronized modular sleeper sectional, furniture makers integrate this pull out sofa bed mechanism with wheels alongside our structural sofa legs, multi-angle sofa hinges, and heavy-duty sofa bed hardware assemblies.

Key Features of Our pull out sofa bed mechanism with wheels

• 5.45 kg Solid Carbon Steel Frame: Heavy-gauge stamped steel plates with solid steel center pivot rivets withstand daily commercial guest use without sagging.

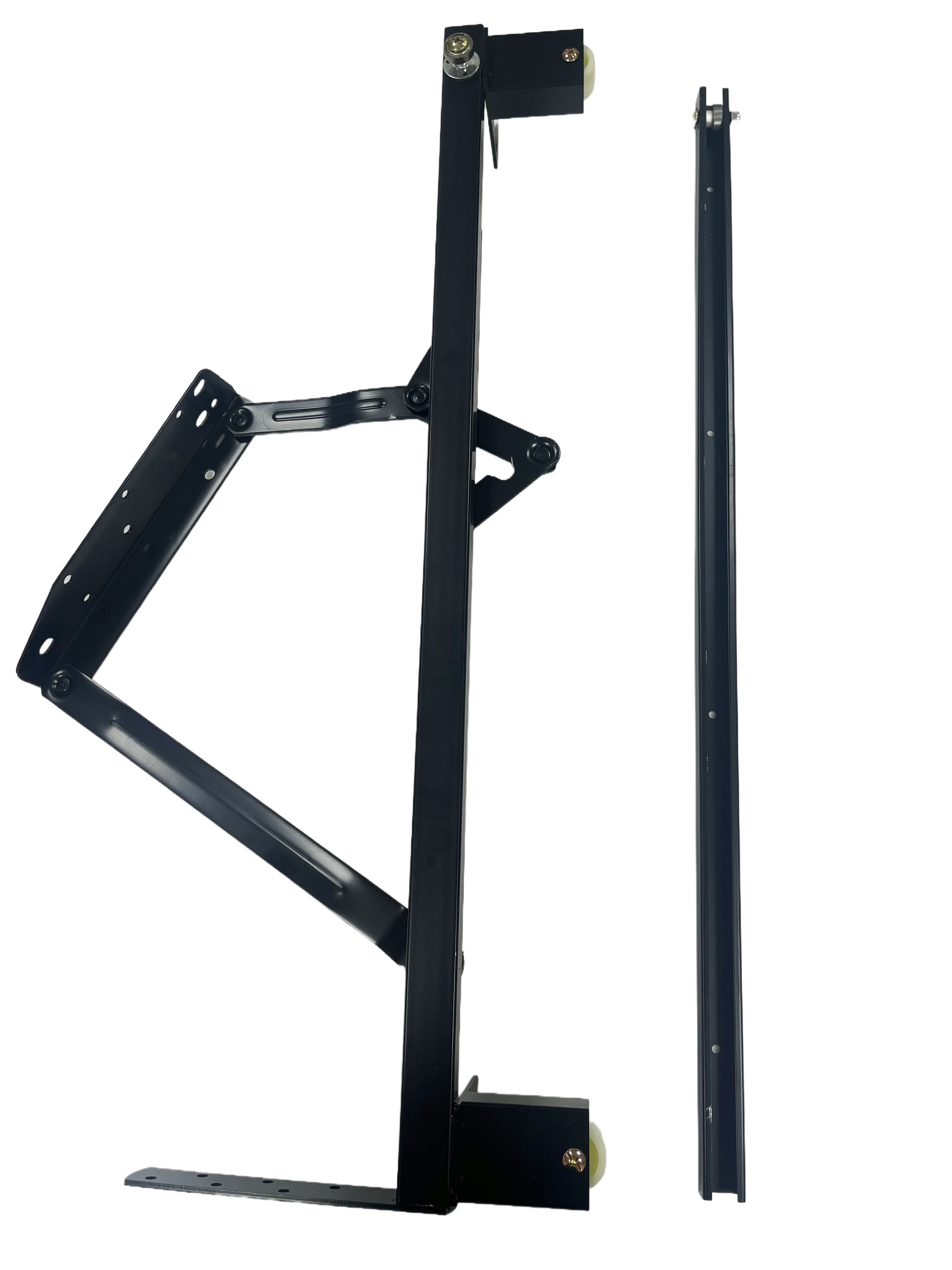

• Floor-Protecting Polyurethane Rollers: Integrated caster wheels glide smoothly across hardwood, ceramic tile, and carpeted floors without tracking or surface gouging.
• 65Mn Spring-Assisted Scissor Lift: High-tensile manganese counterbalanced springs offset platform weight, enabling effortless one-handed elevation from trundle to bed mode.
• Over-Center Mechanical Self-Locking: Rigid geometric stop linkages secure the elevated platform in place, preventing accidental collapse under sleeping loads.
• Anti-Corrosion Matte Black E-Coating: Industrial electrophoretic finish meeting ISO surface standards protects pivot pins and linkage brackets against domestic humidity.

Technical Specifications

Engineering Parameter	Standard Specification
Structural Material	Q235 Carbon Steel (ASTM Compliant)
Net Weight per Pair	5.45 kg / pair Heavy-Duty Construction

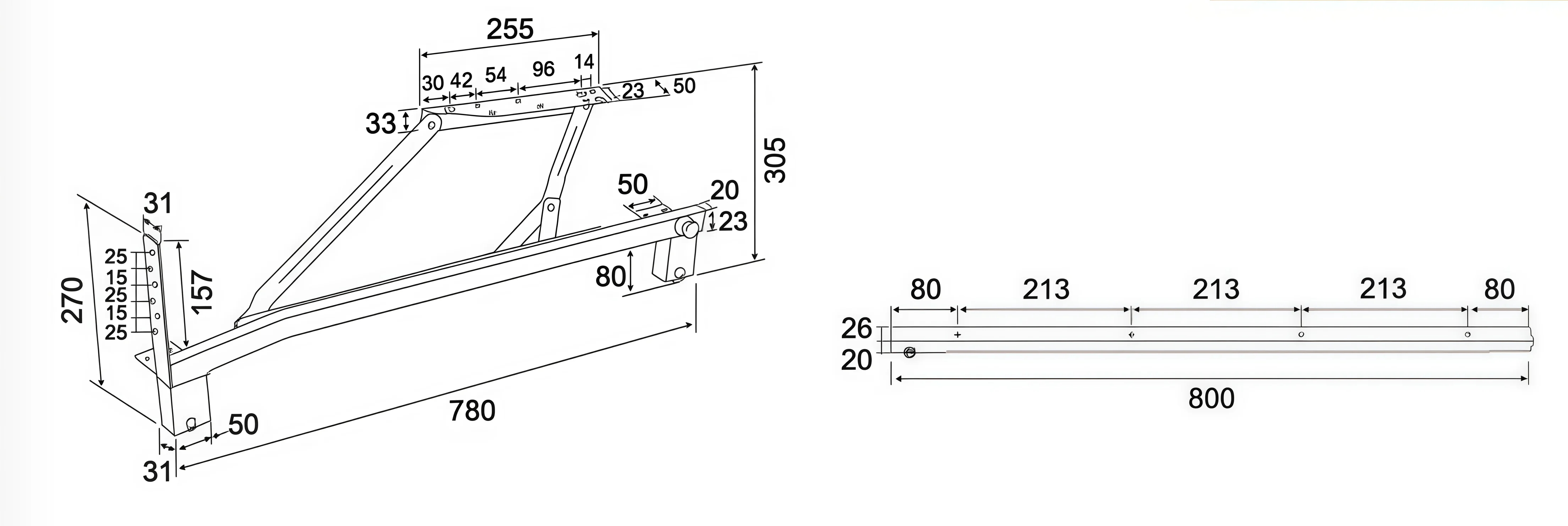

Chassis Dimensions	L800mm x W305mm (Standard L800w305 Base)
Spring Specification	65Mn Manganese Steel Counterbalance Spring
Manufacturing Tolerance	±0.2mm Precision Stamping Alignment
Surface Treatment	Matte Black Electrophoretic E-Coating (48h NSS Tested)
Static Load Rating	200kg (440 lbs) Continuous Distributed Sleeping Load
Fatigue Life Durability	20,000 Repeated Roll-Out and Pop-Up Cycles

Target Applications

Contract furniture manufacturers specify this pull out sofa bed mechanism with wheels for space-saving trundle daybeds, modular sectional couches, hospitality sleeper units, and residential convertible sofas. Its low-profile collapsed height fits standard under-seat cavities without altering foam cushion profiles.

3-Step Rapid Installation Guide

1. Step 1: Secure the base mounting brackets onto the inner wooden frame using pre-drilled pilot holes.

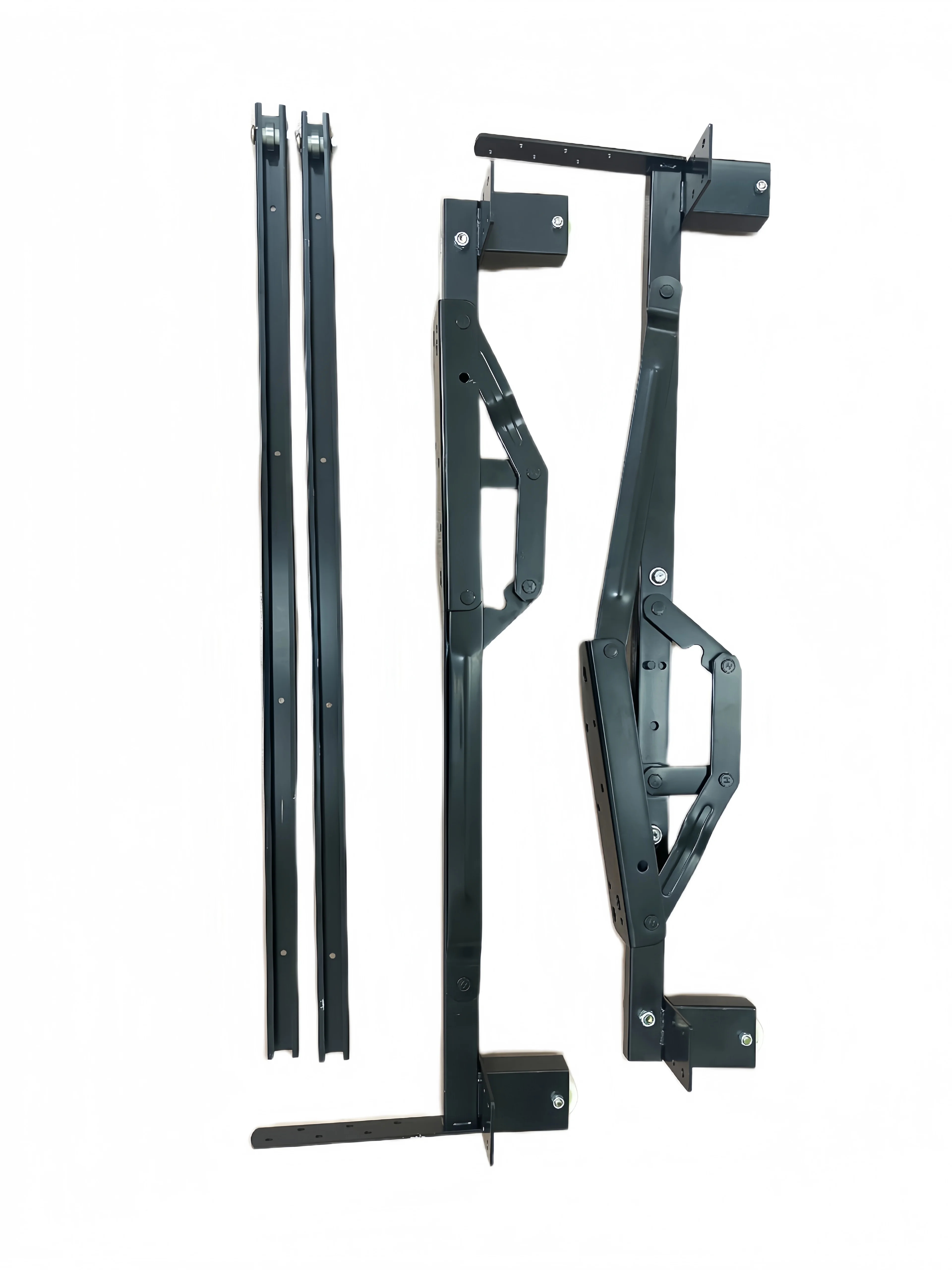

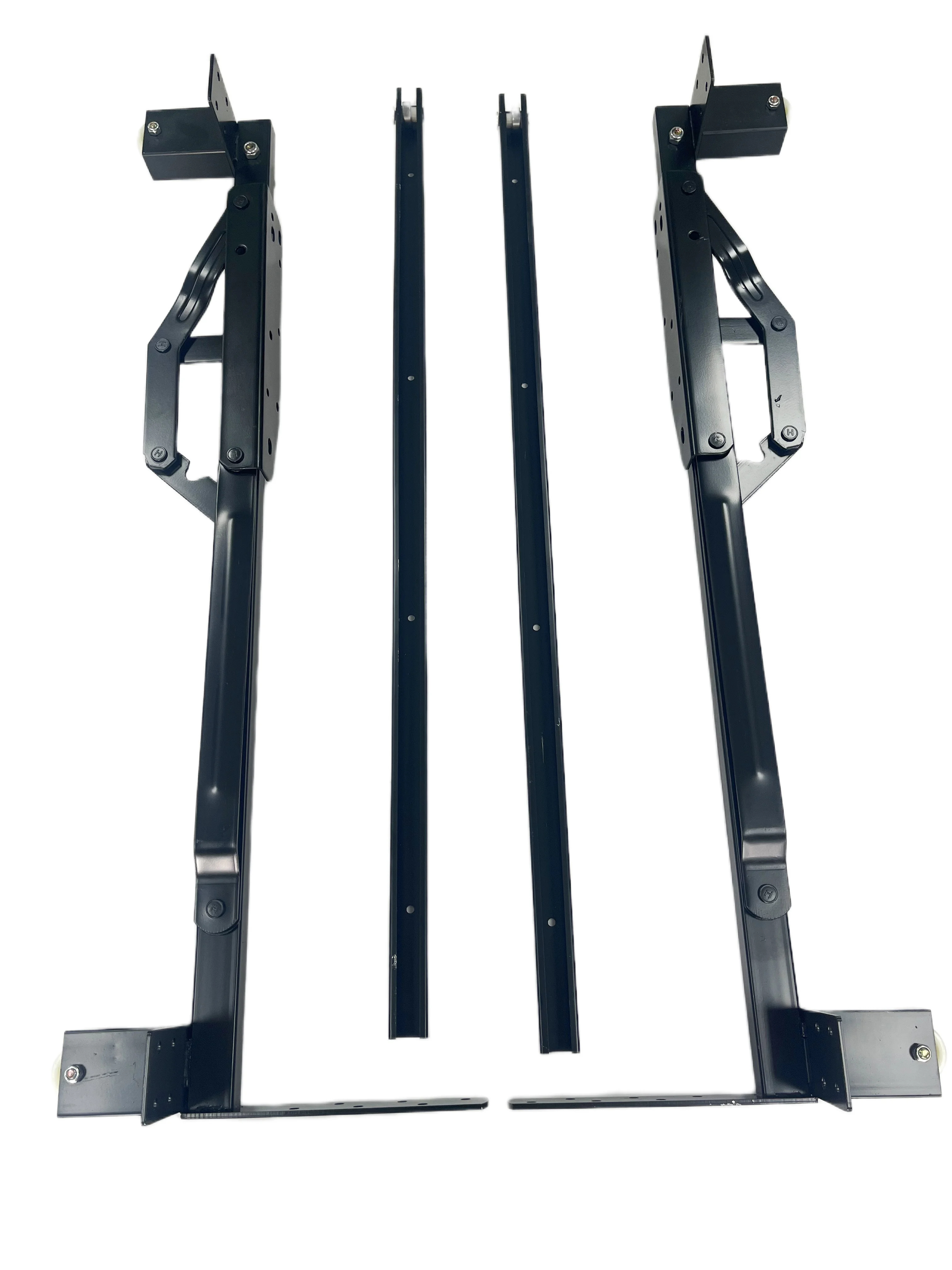

2. Step 2: Mount the trundle carriage to the secondary linkage arms and align floor caster tracks parallel.
3. Step 3: Test full cycle roll-out and lift deployment to confirm automatic mechanical lock engagement.

OEM/ODM Customization Capabilities

Operating from our Jinli manufacturing facility, our factory customizes every pull out sofa bed mechanism with wheels according to client blueprints. We deliver tailored track lengths, custom elevation heights, adjusted 65Mn spring tensions, and private-label packaging for international furniture brands.
