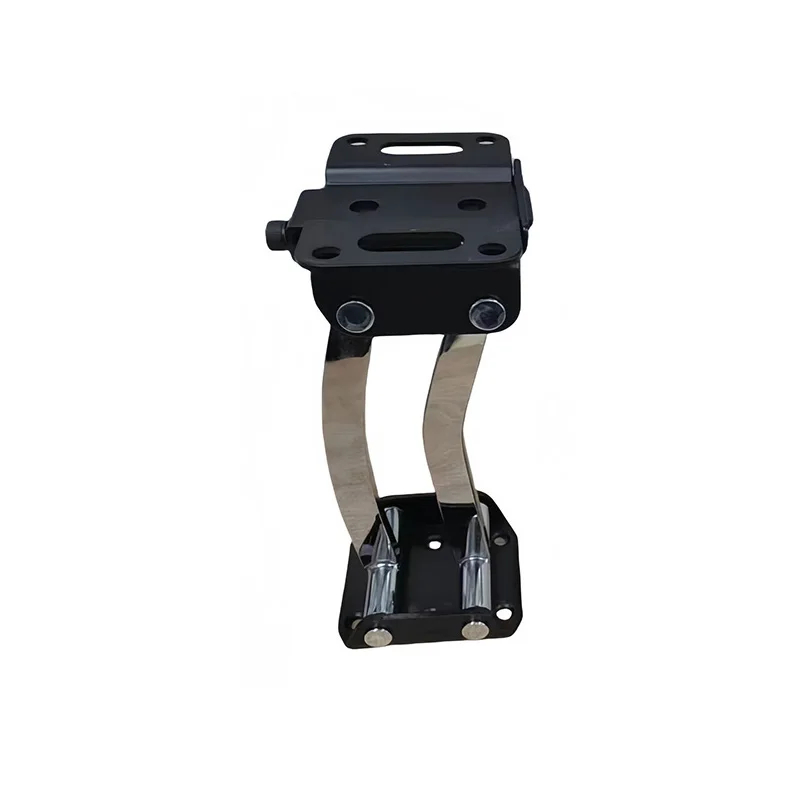

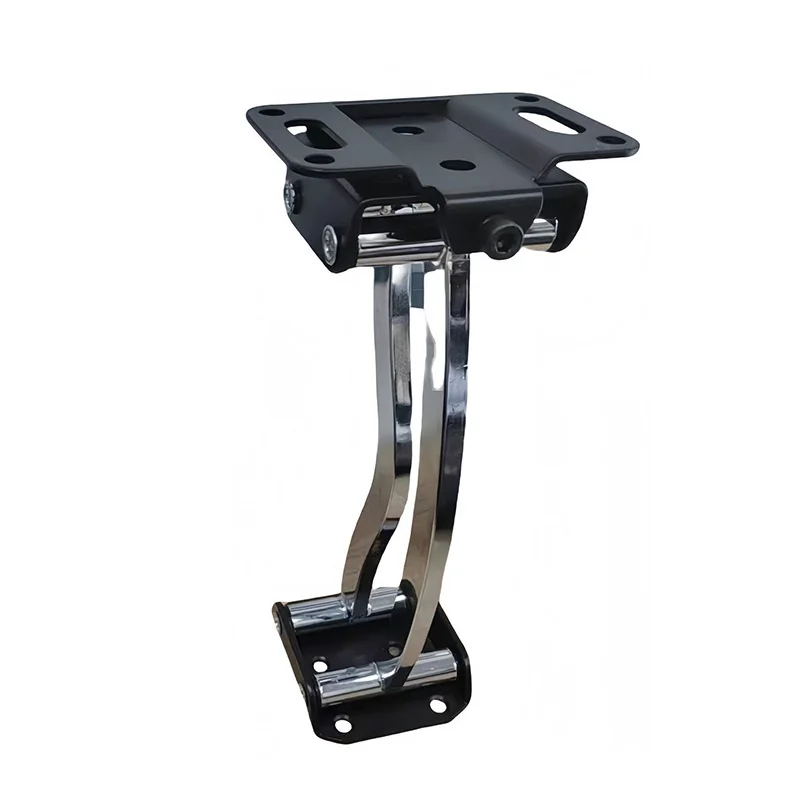

The sofa backrest armrest mechanism manufactured and supplied by BLS Hardware are heavy-duty multi-angle joints engineered for adjustable sofa backrests and armrests. Stamped in our Jinli, Guangdong source factory from 2.5mm carbon steel, these precision hinges eliminate gear slippage, frame sag, and joint looseness, providing quiet and stable angular locking across functional furniture collections.
Within the integrated BLS manufacturing framework, upholstery producers combine this multi-gear sofa backrest armrest mechanism alongside high-load metal sofa legs and precision interlocking sofa connector hardware to build ergonomic modular suites. These articulation hinges also work synchronously with heavy-duty sofa bed hardware in multi-functional convertible daybeds.
Key Features of the Sofa Backrest Armrest Mechanism
- Multi-Position Ratchet Gear: Hardened internal steel teeth provide 5 positive locking angles ranging from 90 to 180 degrees.
- Heavy-Gauge Q235 Steel: Stamped from 2.5mm cold-rolled steel arms to withstand excessive downward pressure without bending.
- Smooth Reset Spring Action: Push past the maximum angle to release the locking pawl for effortless return to zero.
- Galvanized Anti-Rust Finish: Electro-zinc coating protects interior moving parts from moisture, friction wear, and oxidation.
- Universal Mounting Flange: Pre-drilled screw slots allow rapid fixation directly into hardwood frames or tubular steel chassis.
| Parameter | Engineering Specification |
|---|---|
| Product Name | Heavy-Duty Sofa Backrest Armrest Mechanism |
| Material Grade | Q235 Cold-Rolled Carbon Steel |
| Plate Thickness | 2.5 mm Heavy-Duty Stamped Arm |
| Dimensional Tolerance | Precision Stamping Standard ±0.2 mm |
| Adjustment Positions | 5-Gear Ratchet (90° to 180°) |
| Surface Plating | Bright Electro-Zinc Plating (White Zinc) |
| Corrosion Resistance | 24 to 48 Hours Neutral Salt Spray |
| Packaging Standard | 50 Pairs per Reinforced Export Carton |
Need Engineering CAD Models? Request 2D dimension blueprints and 3D STEP files for frame design verification.
Request CAD (STEP/DWG) →
Target Furniture Applications
- Reclining Sofa Backrests: Provides multi-step incline adjustment for modular couches and home theater suites.
- Articulating Sofa Armrests: Allows armrests to lay flat to extend seating width or tilt upward for comfort.
- Adjustable Daybed Loungers: Delivers flexible transition between flat sleeping and upright lounge relaxation.
- Commercial Hotel Seating: Withstands heavy, repetitive multi-position adjustments in high-traffic hospitality suites.
Three-Step Installation Guide
- Step 1: Secure the stationary hinge bracket to the interior sofa frame using wood screws.
- Step 2: Attach the movable arm firmly to the backrest or armrest structural subframe.
- Step 3: Cycle the hinge through all angles to verify positive locking and smooth spring return.
Factory Direct OEM and ODM Capabilities
BLS Hardware supports custom arm lengths, customized gear counts, and specialized mounting hole patterns for furniture manufacturers. In our Jinli factory, our tooling team manufactures custom sofa backrest armrest mechanism assemblies to meet your exact frame geometry, torque ratings, and production line tolerances.
Frequently Asked Questions
How does the sofa backrest armrest mechanism adjust angles?
Internal spring pawls engage hardened ratchet teeth as the frame lifts. Pushing past 180 degrees releases the pawl to reset.
What is the rated fatigue life of the ratchet spring?
Our torsion springs are tested to exceed 50,000 articulation cycles without tension fatigue or tooth slipping.
Can BLS customize the gear angle increments for OEM orders?
Yes, we build custom stamping dies to produce tailored gear stops and custom angles for bulk orders.
