In modern motion furniture manufacturing, wide multi-seat sectionals require synchronized kinetic hardware to avoid uneven joint deflection. Within the BLS Hardware commercial furniture hardware ecosystem, this sofa headrest hinge mechanism functions as the precision ergonomic motion node. Fabricated by Zhaoqing Gaoyao Jinli Zhengkai Hardware Factory, it pairs systematically with our bottom heavy-duty metal sofa legs for chassis stability, our under-seat sofa bed lift mechanism for kinetic storage conversion, and our lower frame sectional alligator connectors to build an integrated, commercial-grade upholstered seating frame.
1. Kinematic Function of the Synchronized Sofa Headrest Hinge
Conventional independent hinges frequently suffer from ratchet misalignment when users pull only one corner of a wide headrest cushion. This sofa headrest hinge integrates dual parallel cold-drawn tubular steel tie-rods that mechanically bridge both pivot arms. When torque is applied anywhere along the cushion, both ratchet gears engage and release simultaneously.
Engineering Application Boundaries:
- Target Applications: High-end modular living room sectionals, adjustable home theater loungers, executive recliners, and commercial medical examination beds with cushion widths ranging from 600mm to 1400mm.
- Boundary Warning: Designed strictly for headrest, armrest, and lumbar pillow angle articulation. It must not be utilized as a primary weight-bearing cantilever bed frame or main occupant drop-load support without perimeter structural framing.
2. Technical Comparison: Dual-Rod Synchronized vs. Independent Hinges
Furniture engineering departments must evaluate mechanical torsion resistance when selecting an articulating sofa headrest hinge system:
| Mechanical Criterion | BLS Synchronized Dual-Rod Sofa Headrest Hinge | Conventional Independent Split Hinges |
|---|---|---|
| Asymmetric Force Handling | Dual steel rods transmit torque across the frame; zero lateral twist when lifted with one hand. | Single-sided pulling causes one hinge to jump teeth while the other jams, warping subframes. |
| Assembly Time & Alignment | Single integrated module with pre-set cross-axis alignment. Fastens in minutes. | Requires manual parallel alignment and laser leveling across separate left/right brackets. |
| Acoustic & Gear Longevity | Even tooth load distribution minimizes pawl tooth rounding and grinding clicks. | Uneven lateral force accelerates rivet play and premature gear tooth wear. |
| Finish Protection | Dual-layer protection: E-coated black structural chassis + trivalent zinc-plated gears. | Often basic zinc plating without dedicated corrosion barrier on sliding linkage tracks. |
3. Engineering Specifications & Metallurgical Standards
As documented in our factory technical guide on Q235 steel vs. cold-rolled strip fatigue testing, articulating motion hinges demand high tensile yield strength to maintain gear locking tolerances:
| Engineering Parameter | Factory Manufacturing Specification |
|---|---|
| Product Category | Synchronized Motion Hardware / Sofa Hinges Catalog |
| Core Metallurgy | Cold-Rolled Q235 Carbon Structural Steel with hardened 65Mn internal spring pawls |
| Synchronization Architecture | Dual continuous tubular steel tie-rods (welded to pivot base brackets for maximum torsional rigidity) |
| Angular Adjustment | Multi-position sequential click-stops with terminal 180° over-travel automatic reset |
| Surface Passivation | Hybrid Finish: Electrophoretic Black Deposition (chassis) + Blue-White Trivalent Zinc Plating (ratchets) |
| Fastener Mounting Interface | Pre-punched countersunk channels and slotted holes optimized for M5 / M6 machine screws or timber anchors |
| Packaging & Logistics | Export master cartons with protective divider sleeves; container palletization from Jinli Port |
| Manufacturing Center | Zhaoqing Gaoyao Jinli Zhengkai Hardware Factory (Guangdong Province, China) |
4. Critical Sourcing Insights: Avoiding Common Headrest Failures
Misconception 1: “Thicker steel plate on individual hinges eliminates the need for connecting rods.”
Engineering Reality: On wide cushions (over 800mm), increasing individual plate thickness from 2.0mm to 3.0mm does not solve leverage physics. When an occupant lifts a cushion from the far corner, lateral bending moment still forces the opposite hinge to lag. A synchronized sofa headrest hinge solves this problem through torsional geometry, distributing lifting loads symmetrically regardless of where the hand pulls.
Misconception 2: “All ratchet mechanisms click loudly and wear out quickly.”
Engineering Reality: Rapid failure in a sofa headrest hinge occurs when soft A3 commercial steel is used for the ratchet teeth. Zhengkai Hardware utilizes progressive-die stamped Q235 sectors combined with heat-treated 65Mn spring-steel locking pawls, ensuring crisp engagement and long-term cycle durability without premature gear slippage.
5. Sourcing Summary for Furniture Engineers
Core Procurement Takeaway: Specifying a synchronized dual-rod sofa headrest hinge eliminates warranty claims caused by asymmetric cushion pulling. Direct sourcing from our Jinli manufacturing base provides furniture OEMs with custom rod widths, reliable multi-stage ratcheting, and seamless container consolidation with matching legs and connectors.
6. Sourcing & Integration FAQs
Can Zhengkai Hardware customize the crossbar width of this sofa headrest hinge?
Yes. As a direct manufacturing facility, we offer custom-welded tie-rod lengths and altered mounting hole centers to match your exact sofa cushion frame dimensions (DWG/STEP CAD files supported).
What is the standard factory MOQ for this synchronized mechanism?
Standard production MOQ is 300 pieces. Expedited sample units are available for furniture engineering prototype fitting and cycle testing.

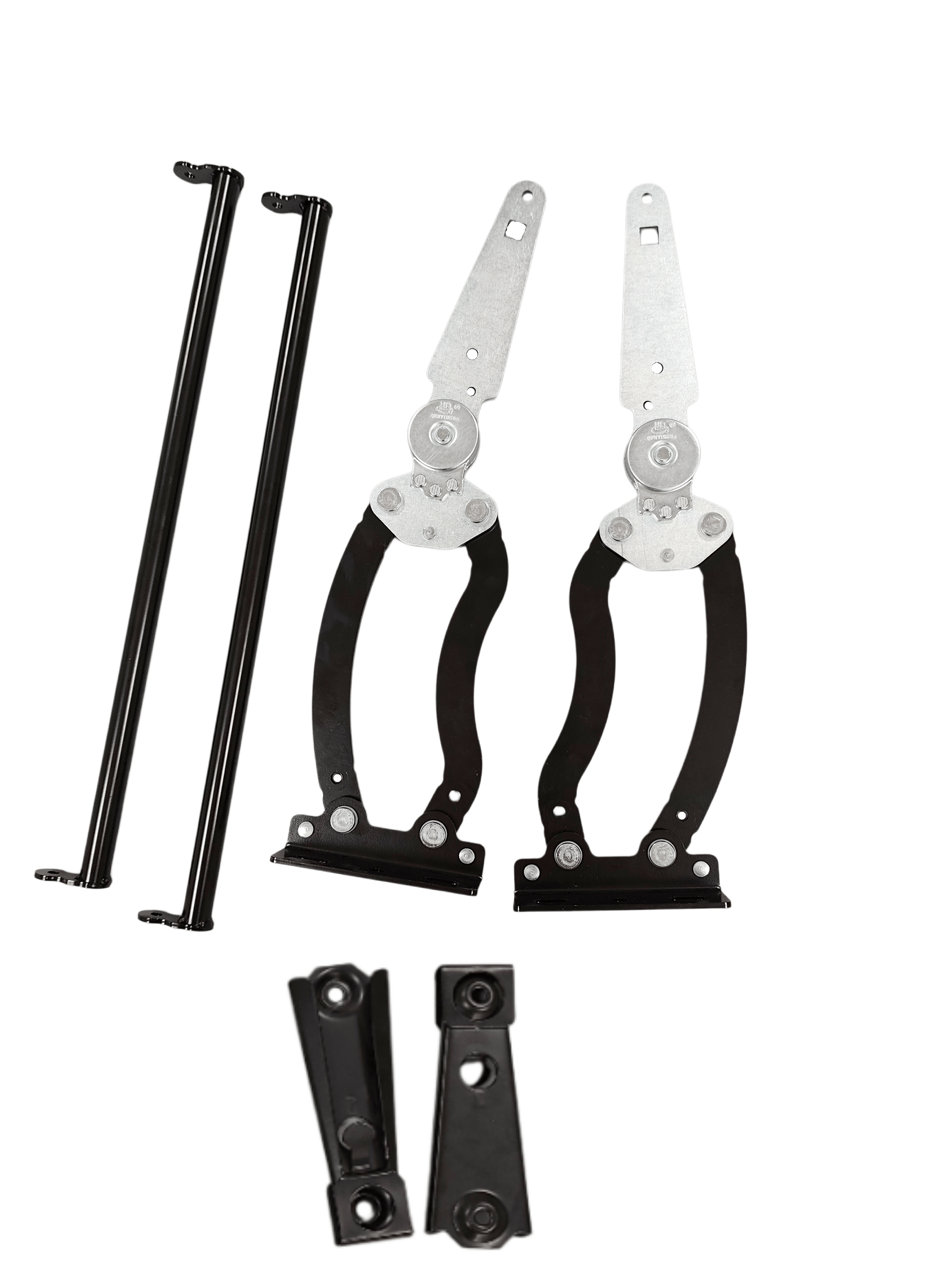

Does this mechanism come with the auxiliary mounting brackets shown in the photo?
Yes. Complete sets include both the primary dual-rod articulating chassis and the stamped auxiliary mounting base plates for secure subframe anchoring.
Request Factory-Direct Container Quotes & 3D CAD Files
Coordinate directly with our Jinli production engineering desk for sample verification, container consolidation, and CAD layout support:
- International Export Brand: BLS Hardware
- Actual Manufacturing Plant: Zhaoqing Gaoyao Jinli Zhengkai Hardware Factory
- Industrial Center: Jinli Town, Gaoyao District, Zhaoqing City, Guangdong Province, China
- Engineering RFQ Desk: ZK-ZhengKai@outlook.com
- Direct Technical Consultation: WhatsApp +86 138 2752 1875
