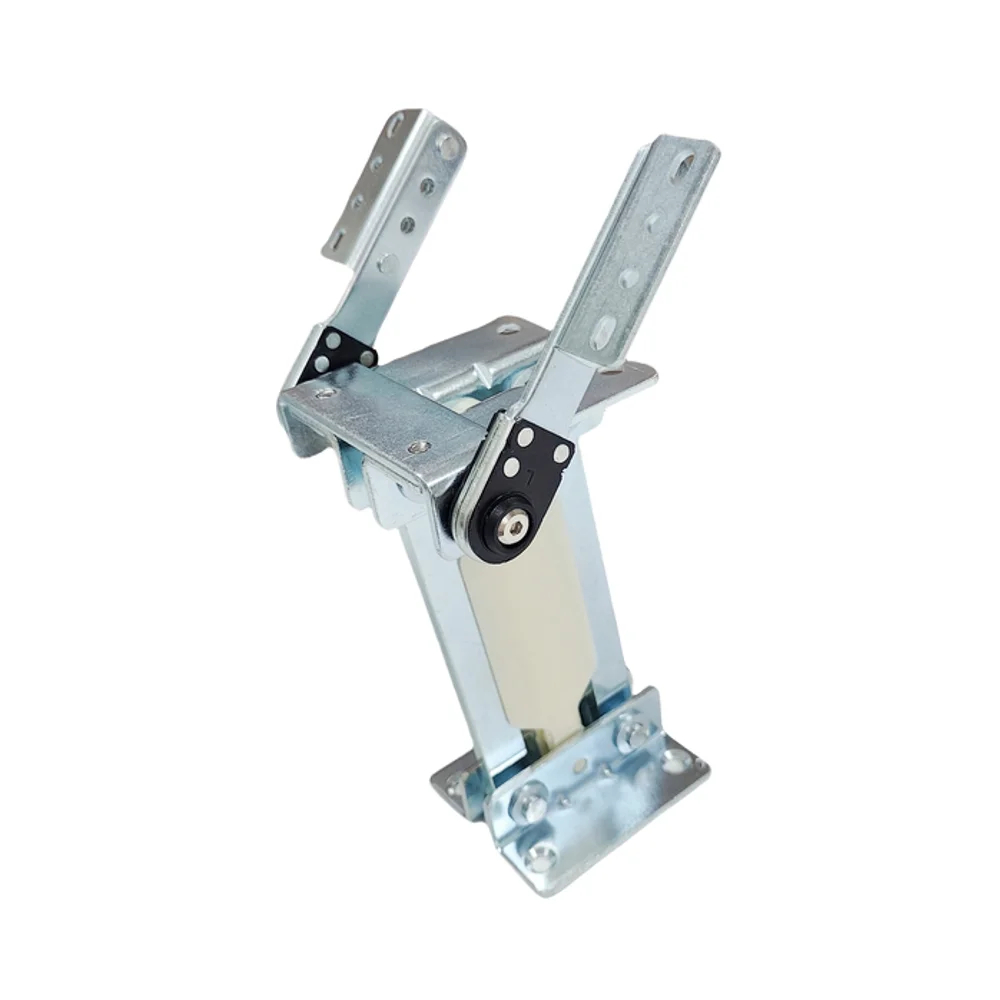

Anti Pinch Sofa Headrest Hinge for Upholstered Furniture
The Anti Pinch Sofa Headrest Hinge (Model BLS-180) manufactured and supplied by BLS Hardware is an engineered multi-angle joint designed for adjustable sofa headrests, armrests, and functional backrests. Stamped in our Jinli, Guangdong source factory (Zhaoqing Gaoyao Jinli Zhengkai Hardware Factory) from 2.5 mm cold-rolled steel, this safety-shielded hinge eliminates finger trapping hazards, gear slippage, and joint looseness across modern residential and commercial furniture collections.
Within the integrated BLS manufacturing framework, furniture factories integrate this anti pinch sofa headrest hinge alongside high-load metal sofa legs and precision interlocking sofa connector hardware to build modular seating suites. These articulation mechanisms also function synchronously with heavy-duty sofa bed hardware in multi-functional convertible daybeds.
Key Features of the Anti Pinch Sofa Headrest Hinge
- Safety Anti-Pinch Enclosure: Engineered protective shroud covers internal scissor gears, completely eliminating finger trapping risks and preventing upholstery fabric from jamming in the gear teeth.
- Multi-Position Ratchet Gear: Hardened internal steel teeth provide 5 positive locking angles ranging from 90° to 180° with a 35 N·m anti-slip holding torque.
- Heavy-Gauge Q235 Steel: Stamped from 2.5 mm cold-rolled structural steel arms to withstand excessive downward pressure without bending or warping.
- Smooth Reset Spring Action: Built with high-tensile 65Mn spring steel; push past the maximum angle (180°) to release the locking pawl for effortless, quiet return to the initial 90° stance.
- Galvanized Anti-Rust Finish: Electro-zinc plating (white zinc) protects interior moving parts from ambient moisture, friction wear, and oxidation.
Technical Specifications & Engineering Matrix
| Product Entity | Anti Pinch Sofa Headrest Hinge (BLS-180) |
|---|---|
| Hardware Category | Sofa Hinges / Ratchet Articulation Hardware |
| Frame & Arm Material | Q235 Cold-Rolled Carbon Steel |
| Internal Pawl & Spring | 65Mn High-Tensile Spring Steel |
| Plate Thickness | 2.5 mm Heavy-Duty Stamped Arm |
| Holding Torque | 35 N·m Rated Anti-Slip Locking Torque |
| Adjustment Range | 5 Positive Locking Positions (90° to 180° with auto-return) |
| Surface Plating | Bright Electro-Zinc Plating (White Zinc) |
| Corrosion Resistance | 24 to 48 Hours Neutral Salt Spray (ASTM B117 standard) |
| Packaging Standard & MOQ | 50 Pairs per Export Carton | Factory Wholesale MOQ: 500 Pairs |
Need Engineering CAD Models? Request 2D mounting blueprints and 3D STEP files for frame design verification.
Request CAD (STEP/DWG) →

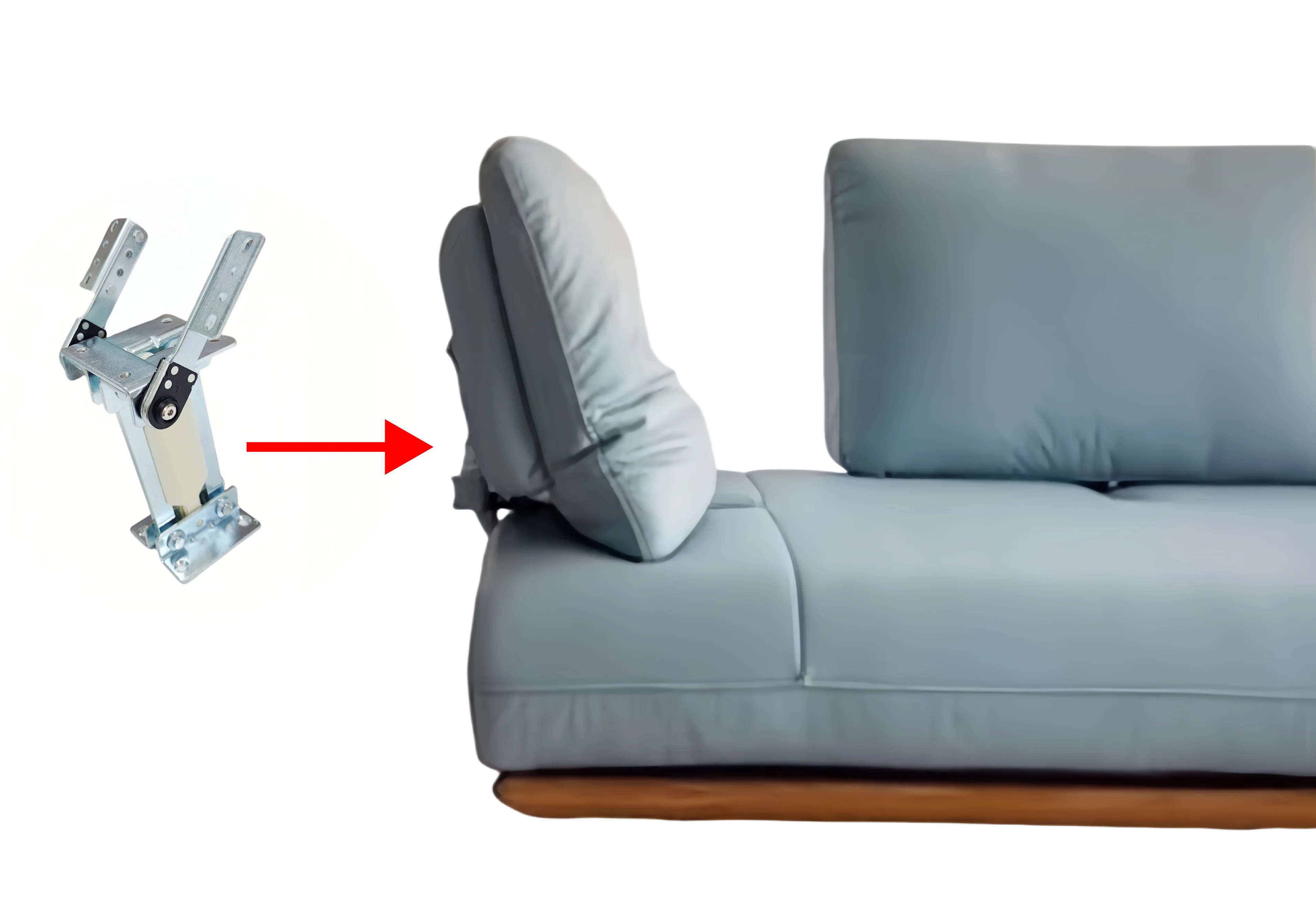

Target Furniture Applications
- Child-Safe Family Couches: Integrating the anti pinch sofa headrest hinge prevents pinch accidents during daily headrest adjustments.
- Adjustable Headrests: Delivers multi-angle ergonomic neck support on contemporary modular sofas and cinema seating.
- Articulating Armrests: Allows armrests to lay flat or tilt upward for customized reclining comfort.
- Commercial Hospitality Seating: Heavy-duty mechanism designed for hotel executive lounges, VIP waiting areas, and contract furniture.
Three-Step Installation Guide
- Step 1: Secure the stationary hinge bracket to the interior wooden sofa carcass using heavy-duty wood screws.
- Step 2: Attach the movable arm firmly to the headrest or armrest structural subframe through pre-drilled flange holes.
- Step 3: Cycle the hinge through all angles to verify positive 5-step locking and smooth spring return to 90°.
Factory Direct OEM and ODM Capabilities
BLS Hardware supports custom arm lengths, customized gear counts, and specialized mounting hole patterns for furniture manufacturers. In our Jinli factory, our tooling team manufactures each anti pinch sofa headrest hinge assembly to meet your exact frame geometry, torque ratings, and production line tolerances.
Frequently Asked Questions
How does the anti pinch sofa headrest hinge protect users?
A protective steel shroud covers the internal scissor joint, preventing fingers or upholstery fabric from entering the gear mechanism during operation.
What is the rated fatigue life of the ratchet spring?
Our torsion springs are tested to exceed 50,000 articulation cycles without tension fatigue or tooth slipping.
Can BLS customize the gear angle increments for OEM orders?
Yes, we build custom stamping dies to produce tailored gear stops and custom angles for bulk orders.
