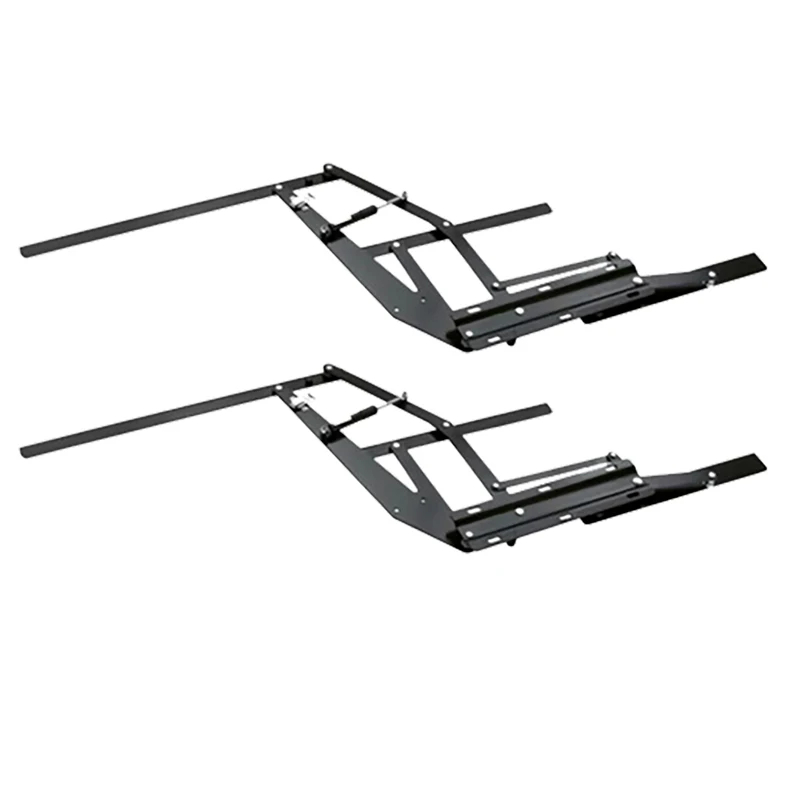

Upgrade your convertible furniture and sleeper couch production lines with our heavy-duty gas piston sofa bed hinge support (Model: BLS-08). Engineered with high-strength pneumatic gas strut assistance and heavy-gauge cold-rolled carbon steel linkage arms, this commercial-grade gas piston sofa bed hinge support delivers effortless one-handed pull-out transformation, smooth vertical elevation, and rock-solid structural stability for modern sleeper couches, pull-out sofa beds, and modular convertible sectionals.
Pneumatic Gas Piston Counterbalance & Effortless Pull-Out Bed Transformation
Our heavy-duty gas piston sofa bed hinge support is precision-engineered for smooth, jam-free ergonomic conversion from living room couch to full sleeper bed:
• Smooth Parallel Pull-Out & Lift Action: The multi-linkage scissor mechanism glides forward and lifts upward simultaneously, converting the hidden under-seat mattress frame into a flush, level sleeping platform with minimal pulling effort.
• Pneumatic Gas Strut Assistance: Heavy-duty hydraulic gas pistons provide powerful lifting counterbalance, eliminating strain for end-users and preventing heavy mattress frames from slamming down.
• Solid Hydraulic Riveted Joints: Solid steel pivot pins paired with self-lubricating wear-resistant nylon friction washers ensure whisper-quiet articulation, zero lateral play, and eliminate annoying frame squeaking over decades of use.
• Seamless Push-Back Return: Built-in hydraulic dampening allows the extended bed frame to fold down and slide back under the sofa seat smoothly and effortlessly.
Heavy-Duty Carbon Steel & 200kg+ Load Rating
Unlike lightweight stamped brackets that sag and twist under continuous sleeper weight, our gas piston sofa bed hinge support is built for commercial furniture durability:
• Thickened Carbon Steel Arms: Laser-cut from 3.0mm–4.0mm high-tensile cold-rolled steel and heavy structural steel tubing, supporting dynamic sleeper loads over 200 kg (440+ lbs).
• Electrophoretic Matte Black Finish: Commercial-grade electro-coating passes standard 48-hour neutral salt-spray testing, protecting against rust, humidity, chipping, and scratches across all climates.
• 50,000+ Cycle Fatigue Tested: Gas pistons, linkage arms, and pivot joints maintain rigid structural alignment and smooth conversion motion over decades of residential or hotel use.
Technical Specifications (Model BLS-08)
• Product Name: Heavy-Duty Gas Piston Sofa Bed Hinge Support / Pull-Out Sleeper Mechanism
• Model Number: BLS-08
• Mechanism Type: Pneumatic Parallel Pull-Out & Scissor Lift-Up Linkage
• Material & Thickness: 3.0 mm – 4.0 mm Heavy-Duty Cold-Rolled Carbon Steel & Structural Tubing
• Load Rating: 200+ kg dynamic sleeper load capacity
• Finish: Electrophoretic Anti-Corrosion Matte Black
• Applications: Pull-out sleeper sofa beds, convertible modular sectionals, hide-a-bed couches, daybeds, and multifunctional hotel seating
Installation Guidelines for Furniture Factories
Integrating this gas piston sofa bed hinge support into mass furniture assembly lines offers clear manufacturing benefits:
1. Symmetrical Rail Alignment: Mount the bottom guide rails securely along the inner sofa base frame using standard M6 or M8 wood screws.
2. Balanced Flange Attachment: Fasten the top linkage bracket flush to the moving pull-out bed frame through the pre-drilled countersunk holes.
3. Standardized Consistency: 100% automated progressive die stamping ensures identical extension stroke and smooth gliding tolerances across high-volume container shipments.
Why Partner with BLS Hardware (China Factory Direct)?
BLS Hardware is a premier furniture hardware manufacturer based in Foshan, China. We supply custom functional mechanisms to upholstered furniture factories, OEM brands, and furniture hardware distributors worldwide:
✔️ Direct Manufacturer Pricing: Maximize your profit margins with zero intermediate agent markups.
✔️ OEM & ODM Customization: Custom rail lengths, bracket dimensions, and bespoke gas strut force ratings.
✔️ Rigid Quality Inspection: 100% conversion movement check and gas piston pressure testing before container shipment.
✔️ Reliable Global Shipping: Efficient logistics support for container sea freight, air cargo, and door-to-door delivery.
